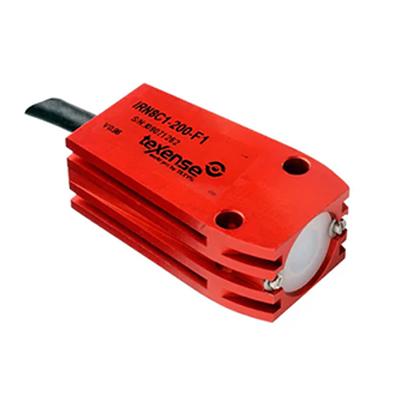

IRN8C-F1-200 - 8-ch IR tyre temperature sensor for CAN Bus, lens 0°
| Item code: | IRN8C-200-F1 |
|---|---|
| Weight: | 0,015 Kg |
Services
PrintThe Texense 8 channel infrared sensor is dedicated to Tyre Temperature Monitoring.
That product was developed first for Formula1 application.
It allows to measure a line of 8 spots on a tyre width and therefore if installed at the correct distance will give the surface tyre temperature distribution.
The Texense IRN8, combining perfect accuracy at 200°C (± 1%FS) and good temperature compensation, is the ideal solution to measure surface tire temperature on the whole width in most severe conditions.
The quality of design, dimensions (31 x 11 x 17 mm) and weight with cable (only 15g) offer to the customer an easy installation. In addition to its compact size, the mounting distance between 200 and 700 mm could give a reading of total width between 152 and 532 mm in 260 milliseconds at 200°C.
This configuration means that the Texense IRN8 is the mix of technology and usability.
On the side of innovation, the Texense infrared have evolved during the time for supply now a protection lens on the 8 channels infrared. The results are long life and reliable data.
The Texense IRN8 is available on -20 to + 200°C range with a supply voltage between 6 and 16V.
That product was developed first for Formula1 application.
It allows to measure a line of 8 spots on a tyre width and therefore if installed at the correct distance will give the surface tyre temperature distribution.
The Texense IRN8, combining perfect accuracy at 200°C (± 1%FS) and good temperature compensation, is the ideal solution to measure surface tire temperature on the whole width in most severe conditions.
The quality of design, dimensions (31 x 11 x 17 mm) and weight with cable (only 15g) offer to the customer an easy installation. In addition to its compact size, the mounting distance between 200 and 700 mm could give a reading of total width between 152 and 532 mm in 260 milliseconds at 200°C.
This configuration means that the Texense IRN8 is the mix of technology and usability.
On the side of innovation, the Texense infrared have evolved during the time for supply now a protection lens on the 8 channels infrared. The results are long life and reliable data.
The Texense IRN8 is available on -20 to + 200°C range with a supply voltage between 6 and 16V.
Sensore fornito con cavo libero (AWG26 x 4)
Per questo sensore Power On offre il servizio JUST PLUG IT IN di cablatura del sensore come da richesta del cliente.
Per questo sensore Power On offre il servizio JUST PLUG IT IN di cablatura del sensore come da richesta del cliente.
Il sensore ifrarossso IRN8 č disponibile in versione 0° e 90 ° e con due diverse gamme di misurazione: 200° C e 140° C
Features
| Range di misurazione: | -20 a 200°C |
|---|---|
| Temperatura operativa: | -20 a 100°C |
| Peso (g): | 15 |
| Accuratezza: | +/- 1 % FS |
| Risoluzione: | 0.1 °/bit |
| Tempo di risposta : | 260 ms / FS |
| CAN Bus 2.oB: | 120 ohm non installato (su richiesta) |
| Uscita: | 2 bytes per canale (interno) |
| Frequenza Baud : | 125 k a 1 Mbps |
| Frequenza : | 1 Hz,10 Hz, su trigger |
| Alimentazione: | 6 a 16 V |
| Consumo: | 17 mA |
| Distanza di calibrazione: | 200 a 700 mm |
| Campo visivo FOV (90% rad): | 6.5 : 1 (30mm a 200mm) |
| Lunghezza d' onda: | 8 a 14 micro metri |
| Lente di protezione: | Vetro sostituibile (PHED) |
| Emissivitą: | Fattore di guadagno di CAN 0.5 di 2 |
| Custodia: | Alluminio |
